Threaded Connector
$25.75 – $173.95
The AIRnet threaded connector can be used on the end of the pipe to create a male NPT connection. Fittings can be equal or reducing connections.
- Description
- Aluminum Range Fittings
- Additional information
Description
AIRnet Threaded Connector
Use the threaded connectors to connect to the end of the aluminum pipe to create a male NPT connection. Use at the end of drops to connect to threaded accessories. Connecting to an existing system that is not AIRnet is is recommended that you make the joining connection with NPT thread.
AIRnet is fast and easy to install and flexible for the future
Time and Tooling
- Quick connections with no need to crimp, thread, solder or glue the pipe
- No heavy tooling or machinery required
- PF series and PM can be connected to any existing network via simple use of adaptor unions and nipple sockets
- PF series is assembled by hand, a push of the pipe into the fitting is all it takes
Modularity
- Easy to handle and easy to work with lightweight materials
- Modular design supports extensions and modifications to meet new demands
- Components are interchangeable and reusable after disassembly
- Quickdrops are easily mounted, both horizontally and vertically

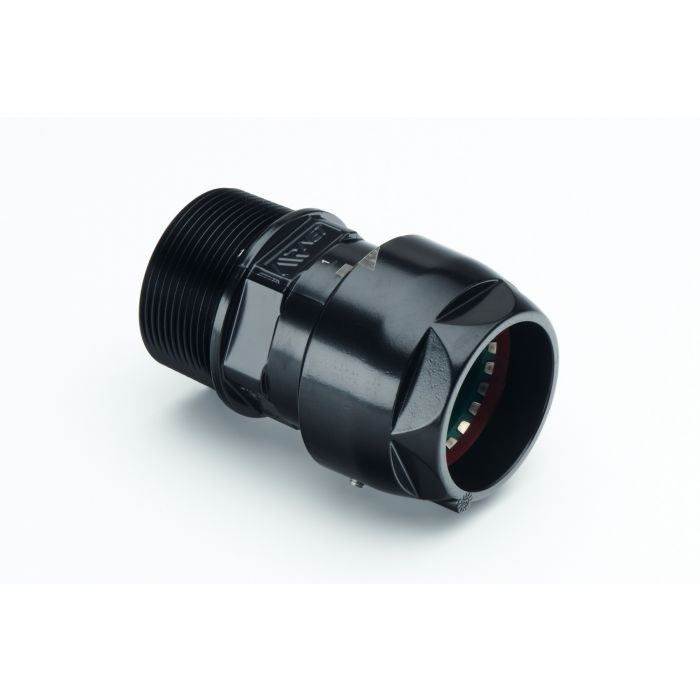

Nipple Socket NPT Male Aluminum
AIRnet Threaded Connector Part Numbers 2811101880 2811111880 2811211880 2811221880 2811431880 2811441880 2811541880 2811551880 2811651890 2811661890 2811761890 2811771890
FITTINGS 20 (3/4”) – 25 (1”) – 40 (1 1/2”) – 50 (2”) MM (PF SERIES)
Push to fit technology
Engineered polymer PA6 – GF30 fiberglass reinforcement
Aluminum high pressure die casting EN AC-46100 (Similar to A03830)
Wrought aluminum alloy EN AW-6026 (Similar to alloy 6082)
NBR 70 Sh A (PTFE coating on pipe seal)
FITTINGS 63 (2 1/2”) – 80 (3”) MM (PM SERIES)
Torque to grip technology, pre marked
Aluminum high pressure die casting EN AC-43400 (similar to A360)
Wrought aluminum alloy 6082
NBR 70 Sh A
FITTINGS 100 (4”) – 158 (6”) MM
Bolt clamp technology
Aluminum permanent mold casting EN AC-43100 (Similar to A13600)
Stainless Steel EN 1.4301 (Similar to alloy 304)
NBR 70 Sh A
Additional information
| Weight | N/A |
|---|---|
| Diameter Aluminum | |
| Diameter Out | 1 1/4 in MNPT, 1 1/2 in MNPT, 1/2 in MNPT, 1 in MNPT, 2 in MNPT, 2 1/2 in MNPT, 3 in MNPT, 3/4 in MNPT |
| AIRnet Series |
