- AIRnet Aluminum Range

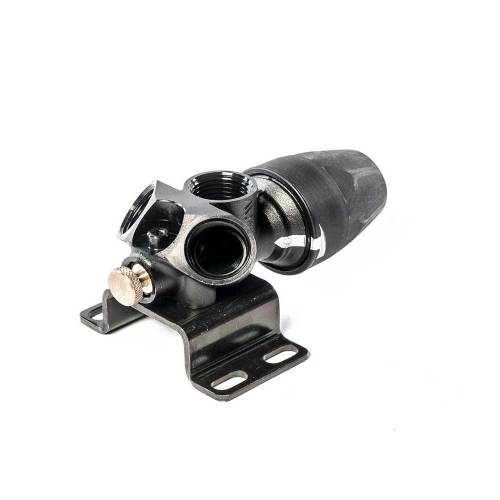

Wall Mounted Manifold
The following sections gives information on general AIRnet products and not specific to wall mounted manifold fittings.[/vc_column_text][vc_tta_accordion active_section=”false”][vc_tta_section title=”Discover AIRnet” tab_id=”1452714138284-a966deda-8c46″][vc_column_text]
AIRnet is a compressed air piping system that delivers quality air exactly where you need it, from compressor to the point of use.
- Low friction and seamless connections of AIRnet minimize pressure drop thus effectively reduce the cost of ownership of your piping system.
- Thanks to a smart design and low weight materials, AIRnet can be installed 70% faster than conventional systems.
- AIRnet pipes and fittings are assembled in just a few steps by a single installer, without the need for heavy machinery.
[/vc_column_text][/vc_tta_section][vc_tta_section title=”Take it Easy” tab_id=”1452713811975-51935251-9b3f”][vc_column_text]TAKE IT EASY
One person can safely handle and install AIRnet. While solid and robust, aluminum AIRnet pipes weigh five times less than galvanized pipes. AIRnet is installed with simple tools. No welding, gluing or crimping is required. Welding or lathe machines are a burden of the past. AIRnet offers a full scope of materials including pipes, fi ttings and accessories.
EASY DOES IT! Connect AIRnet to a threaded system with the innovative Adaptor Union Nut. AIRnet PF series is the first in the industry to offer a standard built-in Conductivity Strip.
FROM DESKTOP TO WORKSHOP AIRnet Planner 24/7 is a unique software tool to design and quote an AIRnet installation. It provides a detailed network structure and calculates the pressure drop. AIRnet planner 24/7 creates the bill of material, lists the exact number of pipes and fittings needed and calculates the assembly time.[/vc_column_text][/vc_tta_section][vc_tta_section title=”The Right Stuff” tab_id=”1452713812342-3f307596-9bd6″][vc_column_text]THE RIGHT STUFF
AIRnet consists of aluminum and polymers, highly durable materials suitable for compressed air as well as for vacuum and nitrogen gas.
AIRnet is resistant to corrosion, mechanical shocks, thermal variations and outdoor weather conditions.
AIRnet offers consistently clean quality air, protecting the downstream manufacturing process and contributing to equipment longevity.
The AIRnet leak-resistant connections offer superior sealing.
The low friction factor of aluminum and the seamless connections minimize pressure drop.
Low pressure drop and a bigger inner diameter result in high efficiency.[/vc_column_text][/vc_tta_section][vc_tta_section title=”Ready Set Done” tab_id=”1452713904106-a52c1cc7-f4f3″][vc_column_text]READY? SET? DONE!
The pipes are easy to cut and the polymer or aluminum fittings ensure a perfect alignment instantly.
AIRnet does not require painting. In compliance with industrial standards, AIRnet pipes are standard painted for simple network identification.
AIRnet is adaptable to any existing pipe work. Future extensions can simply be plugged in.
The AIRnet system can be pressurized immediately after assembly, limiting downtime to an absolute minimum.
EVEN FASTER WITH THE PF SERIES
The Pre Fit (PF) series offers pre-torqued fittings from 20-50 mm.
A gentle push of the pipe into the fittings is all it takes. The connection is made within seconds![/vc_column_text][/vc_tta_section][vc_tta_section title=”Wall Mounted Manifold Images” tab_id=”1452714338810-22f8d872-369a”][vc_column_text] [/vc_column_text][/vc_tta_section][/vc_tta_accordion][vc_column_text]Wall Mounted Manifold from AIRnet Page. To view products other than wall mounted manifold (s) please return to the main store[/vc_column_text][/vc_column][/vc_row]
FITTINGS: 20 (¾”) – 25 (1”) – 40 (1 ½”) – 50 (2”) MM (PF SERIES)
CONNECTION: Push to fit technology EN STANDARD
MATERIALS: Engineered polymer PA6 – GF30 fiberglass reinforcement, Aluminum high pressure die casting EN AC-46100 (Similar to A03830), Wrought aluminum alloy EN AW-6026 (Similar to alloy 6082), EN 1706 (ASTM B85), EN 755-2 (ASTM B221)
SEAL FITTINGS: NBR 70 Sh A (PTFE coating on pipe seal)
FITTINGS: 63 (2 ½”) – 80 (3”) MM (BLACK SERIES)
CONNECTION: Torque to grip technology EN STANDARD
MATERIALS: Aluminum high pressure die casting EN AC-46100 (Similar to A03830), Aluminum permanent mold casting EN AC-43100 (Similar to A13600), Wrought aluminum alloy EN AW-6026 (Similar to alloy 6082), EN 1706 (ASTM B85), EN 1706 (ASTM B85), EN 755-2 (ASTM B221)
SEAL FITTINGS: NBR 70 Sh A
FITTINGS: 100 (4”) – 158 (6”) MM
CONNECTION: Bolt clamp technology EN STANDARD
MATERIALS: Aluminum permanent mold casting EN AC-43100 (Similar to A13600), Stainless Steel EN 1.4301 (Similar to alloy 304), EN 1706 (ESTM B85), EN 10088-2 (AISI 304)
SEAL FITTINGS: NBR 70 Sh A
