AIRnet Stainless Steel Solutions
Stainless Steel Solutions for Special Applications
Safe, solid and clean from start to finish.
In certain industries, material selection crucially contributes to the final quality of the end product. It may even have a direct impact on Health, Safety and Environment Regulations. As compressed air or vacuum are used for a variety of applications (sometimes including direct contact with the end product), the choice for the safest solution is decisive.
The preference for oil free compressed air systems is clearly understandable, but the selection of a piping system to ensure 100% oil free air delivery from the
generation to the point of use is as important. Therefore, AIRnet now introduces its brand new stainless steel piping system. Keeping in mind the stringent requirements of different industries, AIRnet Stainless Steel ensures 100% compliance with the highest quality standards.
Press Connection
The press connection is made by inserting the pipe into the fitting with reference to the marked insertion depth. The connection is created by pressing, using an approved press tool. We use a patented sealing ring with a lenticular profile which fits the press crimp groove.
The advantages:
- 20% enlargement of the sealing surface area with a security seal ring minimizes the risk of accidents
- Eliminates the risk of sealing ring being pressed out or damaged
- The fit between the sealing ring and the groove makes the pipes insertion easier.
Stainless Features
- No corrosion, leak resistant and 10 year guarantee
- Press fit system ensures fast installation with minimal tools
- No welding, no threading: just push & press
- Silicone free system
- FKM Seal (approved by all international regulating bodies for Pharma, F&B)
- Can be used for clean room applications (316 L)
- Considerable savings on the labor cost
In line with the high quality performance of the AIRnet product range, we provide our customers with a 10 year guarantee
AIRnet Stainless Steel Piping System
AIRnet Stainless Steel Piping System provides a turnkey distribution solution from air production to the point-of-use. AIRnet continually adds to and upgrades and improves products to provide the best, most reliable stainless steel piping system in the world. In 2018, AIRnet stainless steel piping system was introduced to provide the same quick, easy, reliable approach as the AIRnet Aluminum Piping System to industries that require a 100% oil free air delivery network. Recognizing the stringent requirements of many industries, AIRnet Stainless Steel ensures 100% compliance with the highest quality standards. The AIRnet Stainless Steel Piping System fittings are 316L stainless steel and the assembly is done using press fit system.
AIRnet Stainless Steel Piping System Key features
- No corrosion, leak resistant and 10 years guarantee
- Press fit system ensures fast installation with minimal tools
- No welding, no threading: just push & press Silicone free system
- FKM Seal (approved by all international regulating bodies for Pharma, F&B)
- Can be used for clean room applications (316 L)
- Considerable savings on the labor cost
Material specifications: SS304L (F&B , Pharma , Medical universities , research labs etc…) + SS316L (D15,D28 & D42) + All our fittings are manufactured using SS316L
Product Range

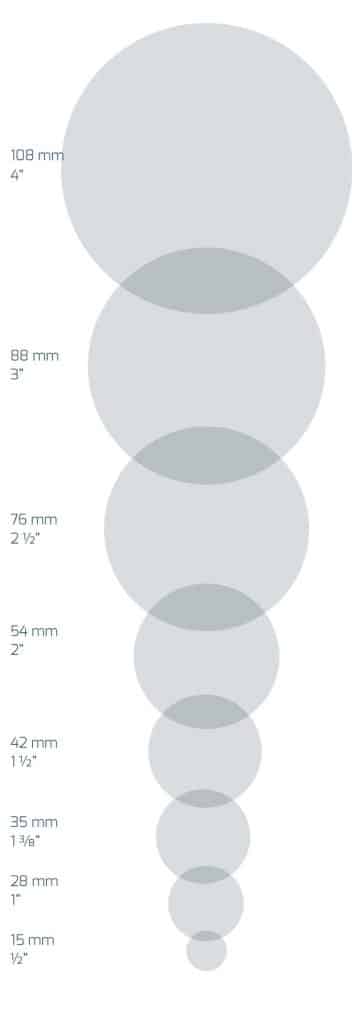

Pipes SS304L: D15 (½”), D28 (1”), D35 (1 ¼”), D42 (1 ½”), D54 (2”),
D76 (2 ¾”), D89 (3 ½”), D108 (4”)
Pipes SS316L: D15 (½”), D28 (1”), D42 (1 ½”)
Applications
Compressed Air, Nitrogen, Vacuum
Material
Stainless Steel AISI 304L 1.4301 EN10088
Stainless Steel AISI 316L 1.4404 ASTM A666
Safety
4, Burst pressure > 64 Bar (> 928 PSI)
Working Pressure
16 Bar (232 PSI)
Connection
Press Fit System
Vacuum Level
20 mbar (0.29 PSI) abs
Dewpoint
Lowest allowable pressure dewpoint is -70°C (-94°F)
Working Temperature
-20°C to 120°C (- 4°F to 248° F)
Fittings Range
D15 (½”), D28 (1”), D35 (1 ¼”), D42 (1 ½”), D54 (2”),
D76 (2 ¾”), D89 (3 ½”), D108 (4”)
Treatment / Seal Fittings
Annealing / FKM (fluoroelastomer)
Your processes deserve a solid, safe and clean piping system.
In certain industries, material selection crucially contributes to the final quality of the end product. It may even have a direct impact on Health, Safety and Environment Regulations. As compressed air or vacuum are used for a variety of applications (sometimes including direct contact with the end product), the choice for the safest solution is decisive.
The preference for oil free compressed air systems is clearly understandable, but the selection of a piping system to ensure 100% oil free air delivery from the generation to the point of use is as important. Therefore, AIRnet now introduces its brand new stainless steel piping system.
Keeping in mind the stringent requirements of different industries, AIRnet Stainless Steel ensures 100% compliance with the highest quality standards.
Connection
The press connection is made by inserting the pipe into the fitting with reference to the marked insertion depth. The connection is created by pressing, using an approved press tool. AIRnet uses a patented sealing ring with a lenticular profile which fits the press crimp groove.
The advantages:
- 20% enlargement of the sealing surface area with a security seal ring minimizes the risk of accidents
- Eliminates the risk of sealing ring being pressed out or damaged
- The fit between the sealing ring and the groove makes the pipes insertion easier.
Key Features
- No corrosion, leak resistant and 10 year guarantee
- Press fit system ensures fast installation with minimal tools
- No welding, no threading: just push & press
- Silicone free system
- FKM Seal (approved by all international regulating bodies for Pharma, F&B)
- Can be used for clean room applications (316 L)
- Considerable savings on the labor cost
