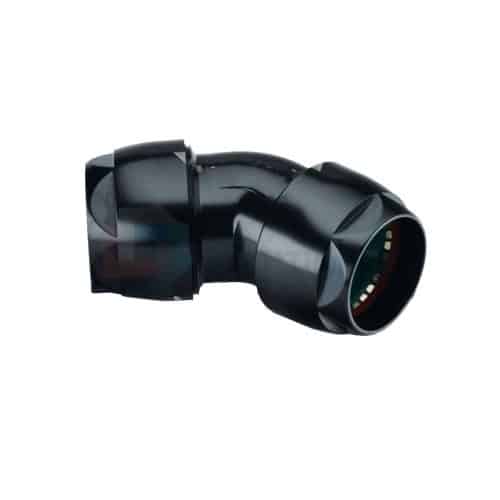

AIRnet 45 Degree Elbow

Use the AIRnet 45 Degree elbow as a 45 degree or 135 degree elbow, can be installed horizontally or vertically in orientation. Use inline for ceiling height decreases or increased or on a drop to bring flush with wall.

EVEN FASTER WITH THE PF SERIES

The Pre Fit (PF) series offers pre-torqued fittings from 20-50 mm.

elbow 45 degree45 degree elbowgroup 20-50mm 1 inch elbow4 inch 45 degree airnet elbow6 inch 45 degree elbow airnnet 158 mm elbow

AIRnet is fast and easy to install and flexible for the future

Time and Tooling

  • Quick connections with no need to crimp, thread, solder or glue the pipe
  • No heavy tooling or machinery required
  • PF series and PM can be connected to any existing network via simple use of adaptor unions and nipple sockets
  • PF series is assembled by hand, a push of the pipe into the fitting is all it takes

Modularity

  • Easy to handle and easy to work with lightweight materials
  • Modular design supports extensions and modifications to meet new demands
  • Components are interchangeable and reusable after disassembly
  • Quickdrops are easily mounted, both horizontally and vertically

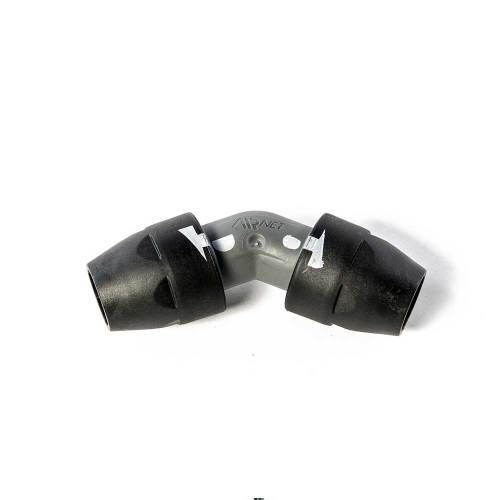

FITTINGS 20 (3/4”) – 25 (1”) – 40 (1 1/2”) – 50 (2”) MM (PF SERIES)

20-50mm fittings

Push to fit technology

Engineered polymer PA6 – GF30 fiberglass reinforcement
Aluminum high pressure die casting EN AC-46100 (Similar to A03830)
Wrought aluminum alloy EN AW-6026 (Similar to alloy 6082)

NBR 70 Sh A (PTFE coating on pipe seal)

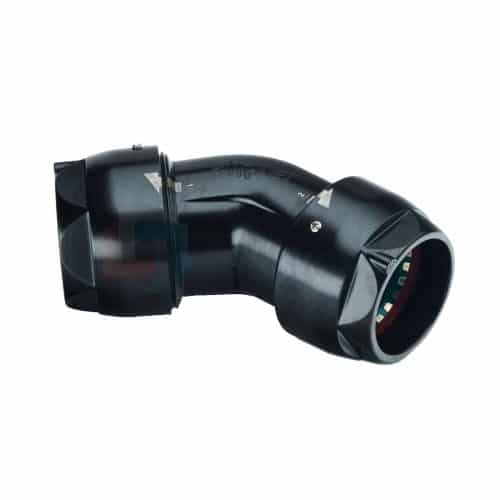

FITTINGS 63 (2 1/2”) – 80 (3”) MM (PM SERIES)

63-80mm

Torque to grip technology, pre marked

Aluminum high pressure die casting EN AC-43400 (similar to A360)
Wrought aluminum alloy 6082

NBR 70 Sh A

FITTINGS 100 (4”) – 158 (6”) MM

large diameter airnet unions

Bolt clamp technology

Aluminum permanent mold casting EN AC-43100 (Similar to A13600)
Stainless Steel EN 1.4301 (Similar to alloy 304)

NBR 70 Sh A

Additional information

WeightN/A
Diameter Aluminum

, , , , , , ,

AIRnet Series
