Description

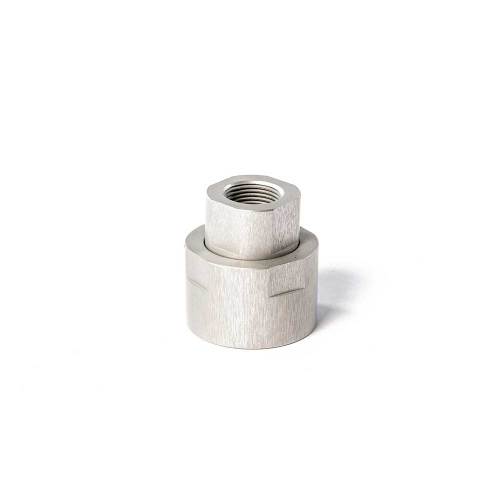

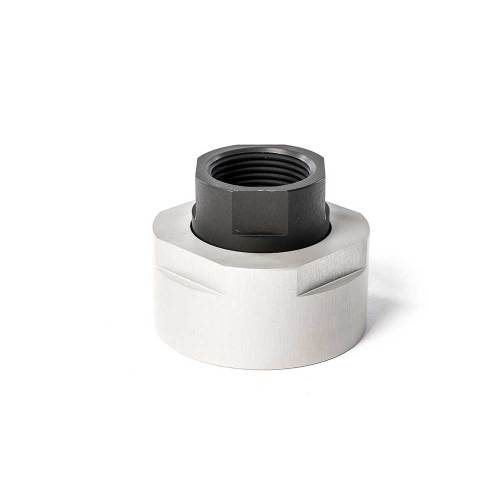

Reduction Kits Female NPT
Use the reduction kits on any fitting to make it have one end converted into a female NPT connection. Unscrew one nut of the fitting entirely and replace the nut with the reduction kit to allow it to accept a male NPT fitting or accessory.
Part Number 2811002080 2811102080 2811202080 2811212080 2811422080 2811542080 2811552080 2811652080 2811762080 2811772080 2811662080 2811661980
AIRnet is fast and easy to install and flexible for the future
Time and Tooling
- Quick connections with no need to crimp, thread, solder or glue the pipe
- No heavy tooling or machinery required
- PF series and PM can be connected to any existing network via simple use of adaptor unions and nipple sockets
- PF series is assembled by hand, a push of the pipe into the fitting is all it takes
Modularity
- Easy to handle and easy to work with lightweight materials
- Modular design supports extensions and modifications to meet new demands
- Components are interchangeable and reusable after disassembly
- Quickdrops are easily mounted, both horizontally and vertically
FITTINGS 20 (3/4”) – 25 (1”) – 40 (1 1/2”) – 50 (2”) MM (PF SERIES)
Push to fit technology
Engineered polymer PA6 – GF30 fiberglass reinforcement
Aluminum high pressure die casting EN AC-46100 (Similar to A03830)
Wrought aluminum alloy EN AW-6026 (Similar to alloy 6082)
NBR 70 Sh A (PTFE coating on pipe seal)
FITTINGS 63 (2 1/2”) – 80 (3”) MM (PM SERIES)
Torque to grip technology, pre marked
Aluminum high pressure die casting EN AC-43400 (similar to A360)
Wrought aluminum alloy 6082
NBR 70 Sh A
FITTINGS 100 (4”) – 158 (6”) MM
Bolt clamp technology
Aluminum permanent mold casting EN AC-43100 (Similar to A13600)
Stainless Steel EN 1.4301 (Similar to alloy 304)
NBR 70 Sh A
Additional information
| Weight | N/A |
|---|---|
| Diameter Aluminum | |
| Diameter Out | 1/2 in FNPT, 1 in FNPT, 1 1/2 in FNPT, 2 in FNPT, 2 1/2 in FNPT, 3/8 in FNPT, 3/4 in FNPT, 3 in FNPT |
| AIRnet Series |
