AIRnet Threaded Valve Pipe to NPT

airnet threaded valve

AIRnet Threaded Valve Pipe to NPT

$65.74$166.06

In stock

$65.74$166.06

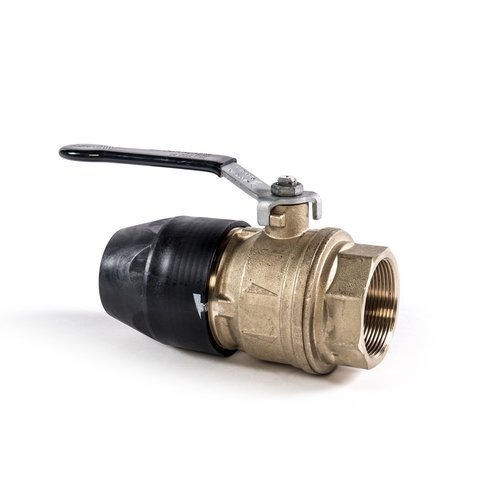

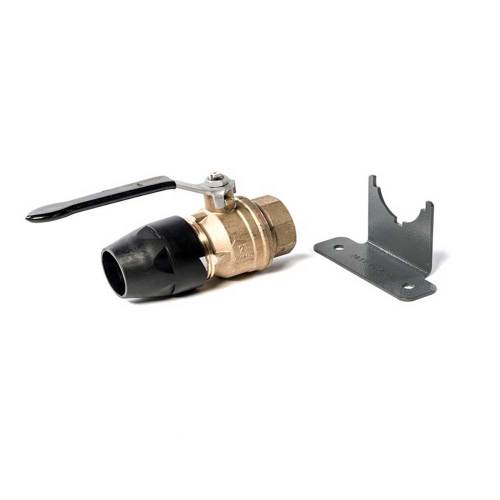

The threaded valve is an aluminum pipe connection on one side of the valve body and a female NPT connection on the other side of the valve body.

Clear
View cart

Description

AIRnet Threaded Valve Pipe to NPT

The threaded valve is an aluminum pipe connection on one side of the valve body and a female NPT connection on the other side of the valve body.

2811105381 replaces P/N. 2810105300

2811225381 replaces P/N. 2810205300

2811445381 replaces P/N. 2810405300

2811555381 replaces P/N. 2810505300

The optimal piping network is sized, planned and installed to support sustainable operational excellence in the production process. Material and product design, installation and maintenance costs; flexibility and safety. They all influence your total cost of ownership and the level of efficiency in your production.

If you are looking for a high performing and effortless system that can be customized to fit any production site, AIRnet will turn out to be the best investment choice you can make. It is a highend
aluminum system specially designed to save the money that other piping systems spend.

The AIRnet system is designed with leak-proof connections that prevent losses in flow and energy. Non-corrosive aluminum pipes and full-bore fittings ensure a smooth and sustainable flow throughout the network. Losses due to friction are reduced to a minimum.

Did you know that a pressure drop of 1 bar results in a 7% increase of your energy consumption? To avoid such losses you need to ensure that your piping system is properly sized, leak-free and retains the pressure. AIRnet is an engineered aluminum piping system that can be sized and planned to deliver the desired pressure for a variety of high performing applications.

The ideal piping system can be connected to any existing network and it can be modified easily to meet any changes on the industrial floor. AIRnet answers these needs with a wide range of interchangeable and reusable fittings designed to support upgrades in layout and capacity. That makes AIRnet fast to install, easy to adapt and cost efficient. AIRnet is a non-corrossive, durable system that does not affect the quality of the gases transported. This minimizes maintenance costs and also costs related to protection of down stream equipment, processes and applications.

AIRnet offers the lowest total cost of ownership over time. It is the optimal solution for any application.

airnet threaded valvethreaded female npt valve

FITTINGS 20 (3/4”) – 25 (1”) – 40 (1 1/2”) – 50 (2”) MM (PF SERIES)

20-50mm fittings

Push to fit technology

Engineered polymer PA6 – GF30 fiberglass reinforcement
Aluminum high pressure die casting EN AC-46100 (Similar to A03830)
Wrought aluminum alloy EN AW-6026 (Similar to alloy 6082)

NBR 70 Sh A (PTFE coating on pipe seal)

FITTINGS 63 (2 1/2”) – 80 (3”) MM (PM SERIES)

63-80mm

Torque to grip technology, pre marked

Aluminum high pressure die casting EN AC-43400 (similar to A360)
Wrought aluminum alloy 6082

NBR 70 Sh A

FITTINGS 100 (4”) – 158 (6”) MM

large diameter airnet unions

Bolt clamp technology

Aluminum permanent mold casting EN AC-43100 (Similar to A13600)
Stainless Steel EN 1.4301 (Similar to alloy 304)

NBR 70 Sh A

Additional information

WeightN/A
Diameter Aluminum

, , ,

Diameter Out

, , ,

AIRnet Series
