AIRnet 90 Degree Elbow

90 degree elbow

AIRnet 90 Degree Elbow


In stock


Use the AIRnet 90 Degree Elbow to join two pieces of blue aluminum pipe (20mm-158mm) or green for gas (20mm-25mm) at an angle.

SKU: N/A Category: Tag:


AIRnet 90 Degree Elbow

Use the 90 Degree Elbows to join two pieces of blue aluminum pipe (20mm-158mm) or green for gas (20mm-25mm) at an angle. Can be used vertically or horizontally (and any angle in between) to create drops or comers in the compressed air piping network. Threaded NPT elbows can be made by joining the 90 degree with an AIRnet NPT reduction kit, simply remove one of the nuts from the end of the elbow and replace it with the reduction kit to make a threaded elbow.

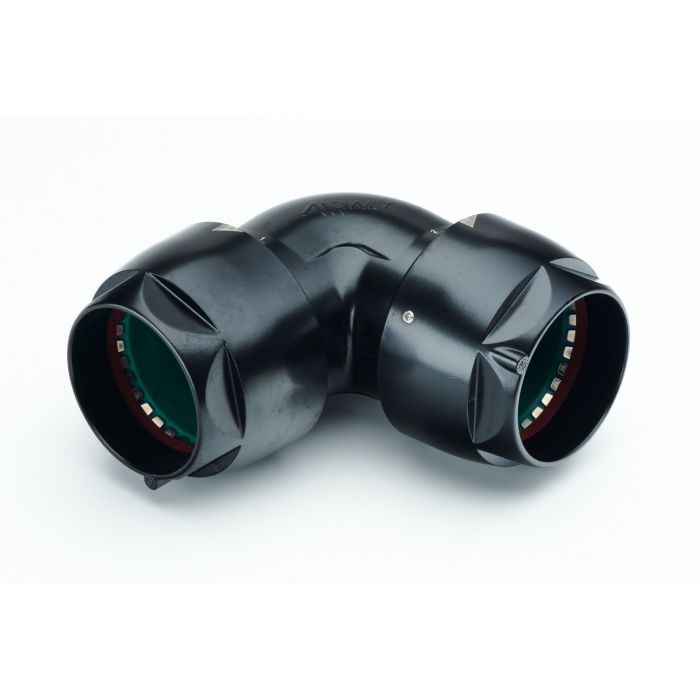

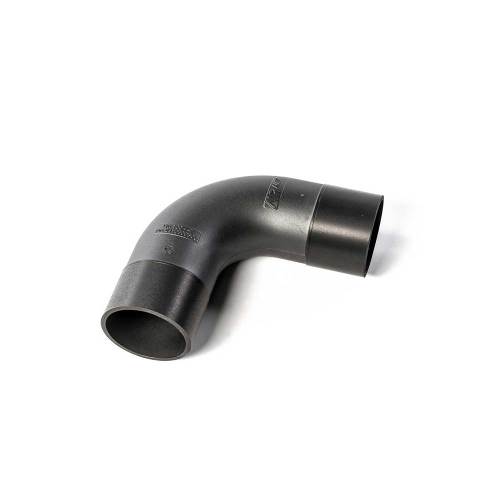

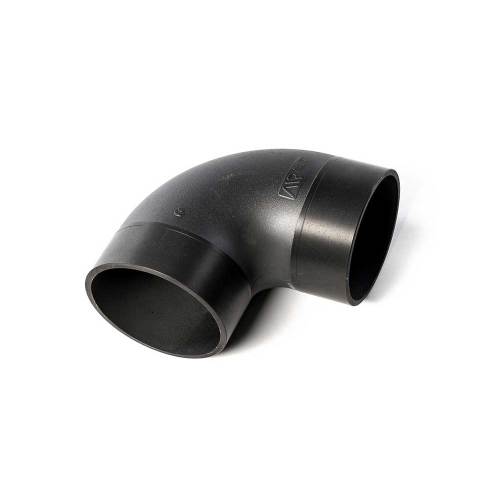

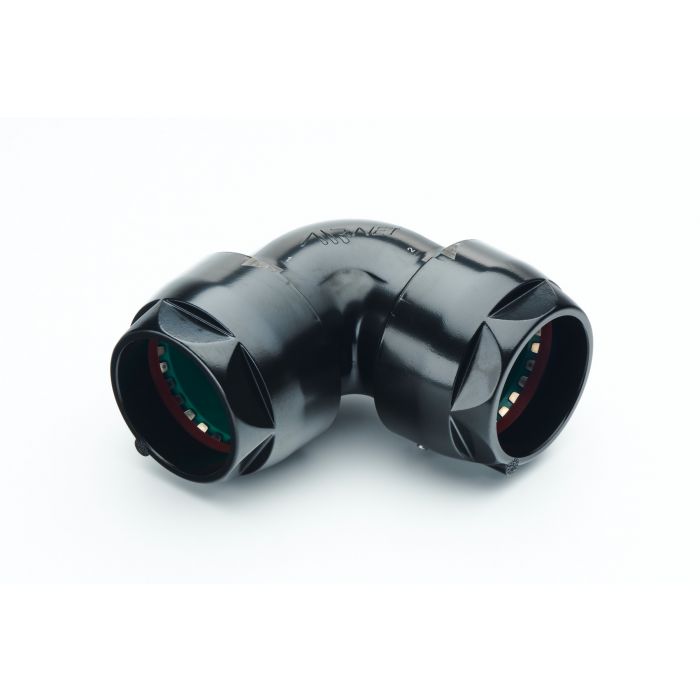

airnet 4 inch elbowairnet 6 inch elbow2 inch 90 degree airnet elbowairnet 1 inch 90 degree elbow100mm and 158mm 2811700390 90 degree elbow 2811600390 90 degree elbow

Part Numbers 2811100380, 2811200380, 2811400380, 2811500380, 2811600390 (replaces 2811600380), 2811700390 (replaces 2811600380), 2810800300, 2810900300

AIRnet is fast and easy to install and flexible for the future

Time and Tooling

  • Quick connections with no need to crimp, thread, solder or glue the pipe
  • No heavy tooling or machinery required
  • PF series and PM can be connected to any existing network via simple use of adaptor unions and nipple sockets
  • PF series is assembled by hand, a push of the pipe into the fitting is all it takes


  • Easy to handle and easy to work with lightweight materials
  • Modular design supports extensions and modifications to meet new demands
  • Components are interchangeable and reusable after disassembly
  • Quickdrops are easily mounted, both horizontally and vertically

FITTINGS 20 (3/4”) – 25 (1”) – 40 (1 1/2”) – 50 (2”) MM (PF SERIES)

20-50mm fittings

Push to fit technology

Engineered polymer PA6 – GF30 fiberglass reinforcement
Aluminum high pressure die casting EN AC-46100 (Similar to A03830)
Wrought aluminum alloy EN AW-6026 (Similar to alloy 6082)

NBR 70 Sh A (PTFE coating on pipe seal)

FITTINGS 63 (2 1/2”) – 80 (3”) MM (PM SERIES)


Torque to grip technology, pre marked

Aluminum high pressure die casting EN AC-43400 (similar to A360)
Wrought aluminum alloy 6082

NBR 70 Sh A

FITTINGS 100 (4”) – 158 (6”) MM

large diameter airnet unions

Bolt clamp technology

Aluminum permanent mold casting EN AC-43100 (Similar to A13600)
Stainless Steel EN 1.4301 (Similar to alloy 304)

NBR 70 Sh A

Additional information

Weight N/A
Diameter Aluminum

, , , , , , ,

AIRnet Series
