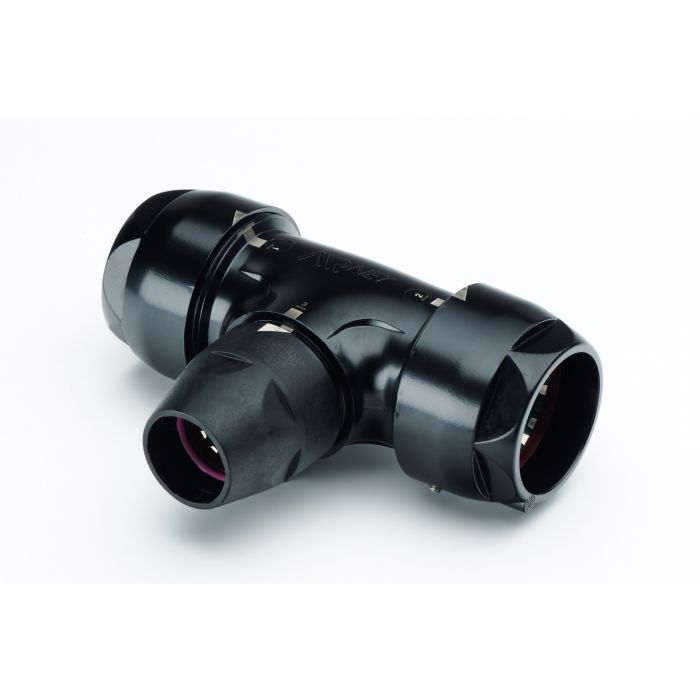

Reducing Tee
$33.33 – $175.38
Use the AIRnet reducing tee on drops or in the header line to reduce the aluminum piping size from two pieces of larger diameter pipe to a smaller diameter size. If using on drops the quickdrop fitting is an alternative that can drop from any diameter to 20mm or 25mm, and comes in female threaded options.
- Description
- Aluminum Range Fittings
- Additional information
Description
Reducing Tee
Use the AIRnet reducing tee on drops or in the header line to reduce the aluminum piping size from two pieces of larger diameter pipe to a smaller diameter size. If using on drops the quickdrop fitting is an alternative that can drop from any diameter to 20mm or 25mm, and comes in female threaded options.
EVEN FASTER WITH THE PF SERIES
The Pre Fit (PF) series offers pre-torqued fittings from 20-50 mm. reducing tee
A gentle push of the pipe into the fittings is all it takes. The connection is made within seconds!
AIRnet is fast and easy to install and flexible for the future
Time and Tooling
- Quick connections with no need to crimp, thread, solder or glue the pipe
- No heavy tooling or machinery required
- PF series and PM can be connected to any existing network via simple use of adaptor unions and nipple sockets
- PF series is assembled by hand, a push of the pipe into the fitting is all it takes
Modularity
- Easy to handle and easy to work with lightweight materials
- Modular design supports extensions and modifications to meet new demands
- Components are interchangeable and reusable after disassembly
- Quickdrops are easily mounted, both horizontally and vertically

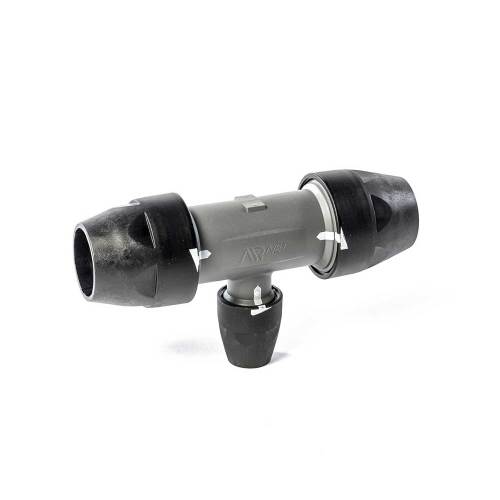

FITTINGS 20 (3/4”) – 25 (1”) – 40 (1 1/2”) – 50 (2”) MM (PF SERIES)
Push to fit technology
Engineered polymer PA6 – GF30 fiberglass reinforcement
Aluminum high pressure die casting EN AC-46100 (Similar to A03830)
Wrought aluminum alloy EN AW-6026 (Similar to alloy 6082)
NBR 70 Sh A (PTFE coating on pipe seal)

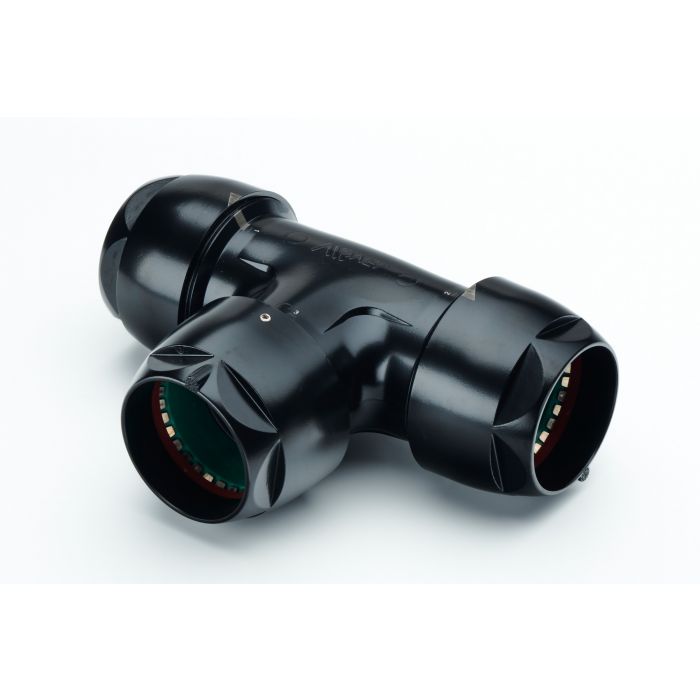

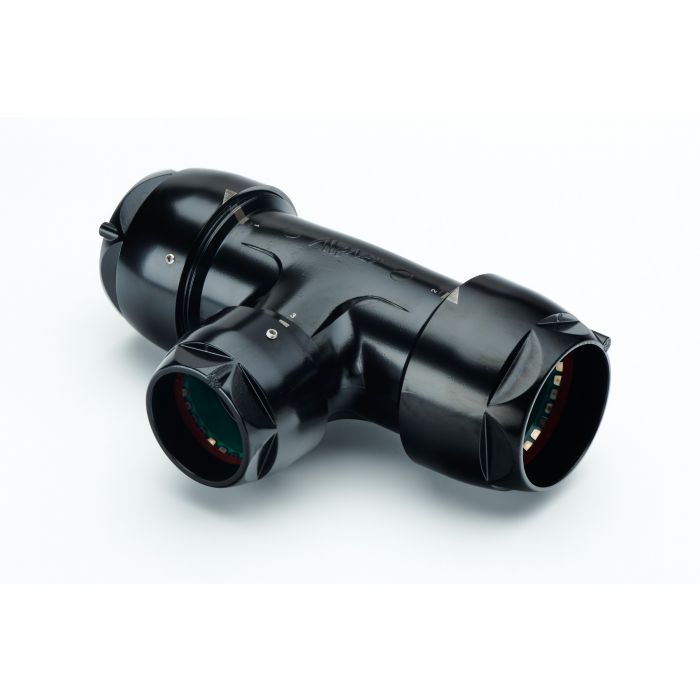

FITTINGS 63 (2 1/2”) – 80 (3”) MM (PM SERIES)
Torque to grip technology, pre marked
Aluminum high pressure die casting EN AC-43400 (similar to A360)
Wrought aluminum alloy 6082
NBR 70 Sh A

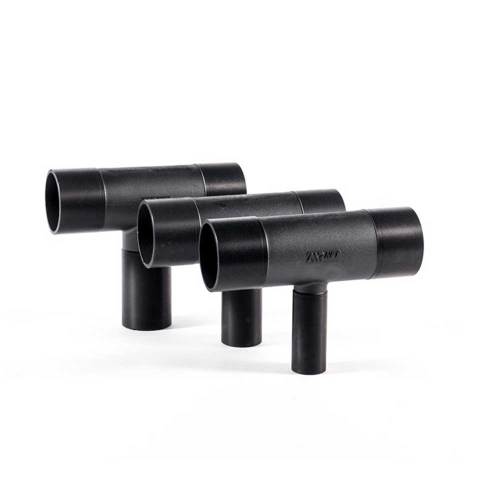

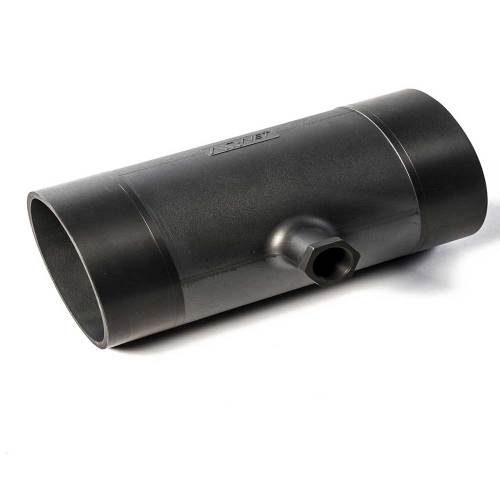

FITTINGS 100 (4”) – 158 (6”) MM
Bolt clamp technology
Aluminum permanent mold casting EN AC-43100 (Similar to A13600)
Stainless Steel EN 1.4301 (Similar to alloy 304)
NBR 70 Sh A
