Quick Drop Push to Fit
$27.56 – $287.91
The AIRnet Quick Drop fitting is an easy to use alternative to a reducing tee. Simply drill a hole in the header pipe and attach the fitting to create a drop to 20mm or 25mm pipe.
- Description
- Aluminum Range Fittings
- Additional information
- Disclaimers
Description

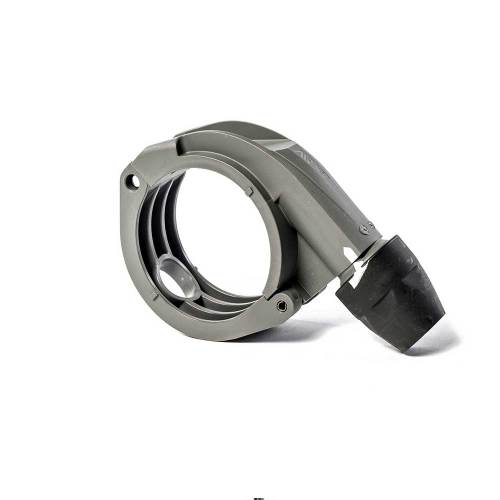

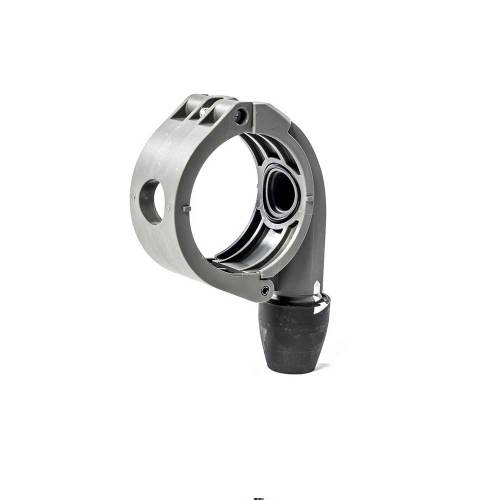

AIRnet Quick Drop Pipe to Pipe
The AIRnet Quick Drop fitting is an easy to use alternative to a reducing tee. Simply drill a hole in the header pipe and attach the fitting to create a drop to 20mm or 25mm pipe.
Step 1) Clamp the Quick Drop Fitting around the line of pipe.
Step 2) Secure Hex bolt
Step 3) Drill 20 or 25 mm hole depending on Quick drop
Step 4) Debur Hole
Step 5) Completion
Part Numbers 2811211080 2811411080 2811421080 2811511080 2811521080 2811611080 2811621080 2811711080 2811721080
Quick drops are specifically designed to connect a distribution line or a main ring to a drop leg from the middle of the pipe. This is a less labor intensive installation than using a reducing tee for the same purpose. The drop has the added benefit of being able to be installed after the fact on existing lines, adding drops when necessary.
FITTINGS 20 (3/4”) – 25 (1”) – 40 (1 1/2”) – 50 (2”) MM (PF SERIES)
Push to fit technology
Engineered polymer PA6 – GF30 fiberglass reinforcement
Aluminum high pressure die casting EN AC-46100 (Similar to A03830)
Wrought aluminum alloy EN AW-6026 (Similar to alloy 6082)
NBR 70 Sh A (PTFE coating on pipe seal)
FITTINGS 63 (2 1/2”) – 80 (3”) MM (PM SERIES)
Torque to grip technology, pre marked
Aluminum high pressure die casting EN AC-43400 (similar to A360)
Wrought aluminum alloy 6082
NBR 70 Sh A
FITTINGS 100 (4”) – 158 (6”) MM
Bolt clamp technology
Aluminum permanent mold casting EN AC-43100 (Similar to A13600)
Stainless Steel EN 1.4301 (Similar to alloy 304)
NBR 70 Sh A
Additional information
| Weight | N/A |
|---|---|
| Diameter Aluminum | |
| Diameter Out | |
| AIRnet Series |
