Valves Pipe to Pipe

Valves Pipe to Pipe

Valves Pipe to Pipe


In stock


AIRnet valves are equal diameter on each side of the valve body and are available in diameters 20mm to 50mm.

SKU: N/A Categories: , Tag:

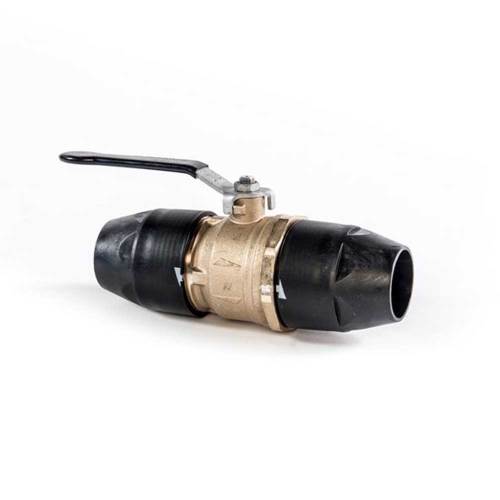

AIRnet Valves Pipe to Pipe

AIRnet valves are equal diameter on each side of the valve body and are available in diameters 20mm to 50mm.

2811105191 replaces 2811105181 replaces 2811105180 replaces P/N. 2810105100

2811205191 replaces 2811205181 replaces 2811205180 replaces P/N. 2810205100

2811405191 replaces 2811405181 replaces 2811405180 replaces P/N. 2810405100

2811505191 replaces 2811505181 replaces 2811505180 replaces P/N. 2810505100

The optimal piping network is sized, planned and installed to support sustainable operational excellence in the production process. Material and product design, installation and maintenance costs; flexibility and safety. They all influence your total cost of ownership and the level of efficiency in your production.

If you are looking for a high performing and effortless system that can be customized to fit any production site, AIRnet will turn out to be the best investment choice you can make. It is a highend
aluminum system specially designed to save the money that other piping systems spend.

The AIRnet system is designed with leak-proof connections that prevent losses in flow and energy. Non-corrosive aluminum pipes and full-bore fittings ensure a smooth and sustainable flow throughout the network. Losses due to friction are reduced to a minimum.

Did you know that a pressure drop of 1 bar results in a 7% increase of your energy consumption? To avoid such losses you need to ensure that your piping system is properly sized, leak-free and retains the pressure. AIRnet is an engineered aluminum piping system that can be sized and planned to deliver the desired pressure for a variety of high performing applications.

The ideal piping system can be connected to any existing network and it can be modified easily to meet any changes on the industrial floor. AIRnet answers these needs with a wide range of interchangeable and reusable fittings designed to support upgrades in layout and capacity. That makes AIRnet fast to install, easy to adapt and cost efficient. AIRnet is a non-corrossive, durable system that does not affect the quality of the gases transported. This minimizes maintenance costs and also costs related to protection of down stream equipment, processes and applications.

AIRnet offers the lowest total cost of ownership over time. It is the optimal solution for any application.

pipe to pipe airnet valveairnet pipe to pipe valve Valves Pipe to Pipe ball valve airnet

FITTINGS 20 (3/4”) – 25 (1”) – 40 (1 1/2”) – 50 (2”) MM (PF SERIES)

20-50mm fittings

Push to fit technology

Engineered polymer PA6 – GF30 fiberglass reinforcement
Aluminum high pressure die casting EN AC-46100 (Similar to A03830)
Wrought aluminum alloy EN AW-6026 (Similar to alloy 6082)

NBR 70 Sh A (PTFE coating on pipe seal)

FITTINGS 63 (2 1/2”) – 80 (3”) MM (PM SERIES)


Torque to grip technology, pre marked

Aluminum high pressure die casting EN AC-43400 (similar to A360)
Wrought aluminum alloy 6082

NBR 70 Sh A

FITTINGS 100 (4”) – 158 (6”) MM

large diameter airnet unions

Bolt clamp technology

Aluminum permanent mold casting EN AC-43100 (Similar to A13600)
Stainless Steel EN 1.4301 (Similar to alloy 304)

NBR 70 Sh A

Additional information

Weight N/A
Diameter Aluminum

, , ,

AIRnet Series
