S-600 ConservAIR pneumatic control multiple parallel configuration to accurately control the flow of compressed air to maintain a stable, consistent and lower pressure throughout the entire production facility. As a result, compressor on-line horsepower is reduced, generating significant energy savings.

SKU: 4103014758 Category:
View cart

Description

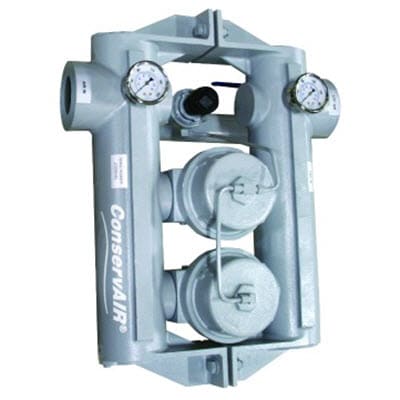

S-600 ConservAIR Pneumatic Control CFM CAPACITY 3000

S Series – ConservAIR Flow Controls

The Intermediate Control (I/C)® S-Series, use our unique multiple parallel configuration to accurately control the flow of compressed air to maintain a stable, consistent and lower pressure throughout the entire production facility. As a result, compressor on-line horsepower is reduced, generating significant energy savings.

The Intermediate Control© monitors air pressure as it is delivered to production and releases air from the air receiver as needed to maintain a continuous, stable air pressure supply. The result of using flow controls is reduced waste from leaks, reduced energy consumption from the compressor room and most importantly, constant, stable air pressure for production.

The S Series uses our unique multiple parallel configuration to accurately control the flow of compressed air to maintain a stable, consistent and lower pressure throughout the entire production facility. As a result, compressor on-line horsepower is reduced, generating significant energy savings.

Features & Benefits

  • Consists of multiple circuit parallels, meaning active control is achieved without the use of expensive proportiona-integral-derivative (PID) controllers
  • Flanged connections
  • Liquid filled industrial pressure gauges installed on the inlet and discharge headers accurate within 1%
  • Monitors system flow dynamics ensuring adequate supply of air for production
  • Pre-packaged and ready for installation
  • Pressure tested and thoroughly checked for leaks after fabrication
  • Return on investment often 18 months or less including soft costs

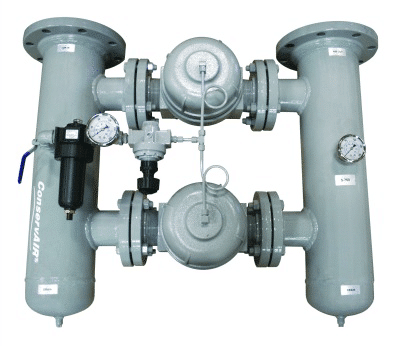

The S-600 ConservAIR Pneumatic Control has a max flow of 3000 SCFM with a 4 inch NPT flange connection.

ModelMax Flow scfmConnection SizeL x W x H (in)Shipping Weight (lb)
S-30 ConservAIR Pneumatic Control1501″ npt (F)12 x 9 x 1560
S-60 ConservAIR Pneumatic Control2501″ npt (F)12 x 10 x 1570
S-100 ConservAIR Pneumatic Control5001.5″ npt (F)12 x 10 x 1580
S-150 ConservAIR Pneumatic Control7502″ npt (F)19 x 11 x 24110
S-200 ConservAIR Pneumatic Control10003″ npt (F)19 x 11 x 24120
S-300 ConservAIR Pneumatic Control15003″ npt (F)19 x 13 x 24130
S-600 ConservAIR Pneumatic Control30004″ flg34 x 14 x 29250
Max inlet pressure: 200 psi Max outlet pressure: 195 psi Inlet pressure must be 5 psi or higher than outlet pressure. Contact us for higher pressure requirements.
