AIRnet Pipe Clip Spacer

AIRnet Pipe Clip Spacer

$17.33$47.70

In stock

$17.33$47.70

AIRnet Pipe Clip Spacer 10 Count. Used in conjunction with AIRnet Pipe Clips to increase height. AIRnet Part Numbers 2811002710, 2811012710 & 2811022710.

SKU: N/A Categories: ,
Clear
View cart

Description

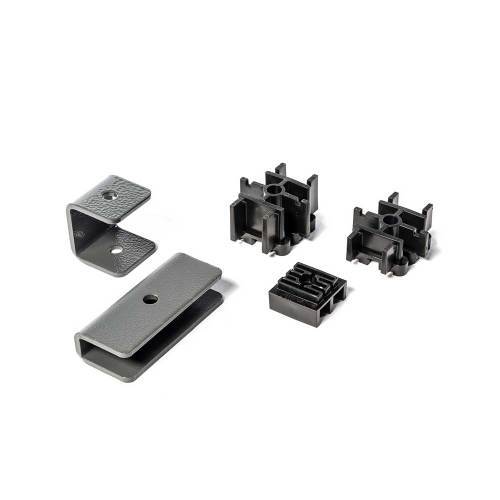

AIRnet Pipe Clip Spacer 10 Count

The AIRnet Pipe Clip Space is used in conjunction with AIRnet Pipe Clips to increase height.

AIRnet Part Number 2811002710 or listed as AIRnet Part 2811 0027 10 for 20mm & 25mm Aluminum Pipe rises 15mm.
AIRnet Part Number 2811012710 or listed as AIRnet Part 2811 0127 10 for 40mm & 50mm Aluminum Pipe rises 20mm.
AIRnet Part Number 2811022710 or listed as AIRnet Part 2811 0227 10 for 63mm & 80mm Aluminum Pipe rises 30mm.

Dimensional Drawings for Pipe Clip Spacers

AIRnet is fast and easy to install and flexible for the future

Time and Tooling

  • Quick connections with no need to crimp, thread, solder or glue the pipe
  • No heavy tooling or machinery required
  • PF series and PM can be connected to any existing network via simple use of adaptor unions and nipple sockets
  • PF series is assembled by hand, a push of the pipe into the fitting is all it takes

Modularity

  • Easy to handle and easy to work with lightweight materials
  • Modular design supports extensions and modifications to meet new demands
  • Components are interchangeable and reusable after disassembly
  • Quickdrops are easily mounted, both horizontally and vertically

2811002710 2811 0027 102811012710 or 2811 0127 102811022710 or 2811 0227 10

Additional information

WeightN/A
Diameter Range

20mm – 25mm, 40mm – 50mm, 63mm – 80mm

AIRnet Series
